Radio Kit Lite - GMR45 GMRS Band Mobile Radio with Stealth Antenna
Radio Kit Lite - GMR45 GMRS Band Mobile Radio with Stealth Antenna

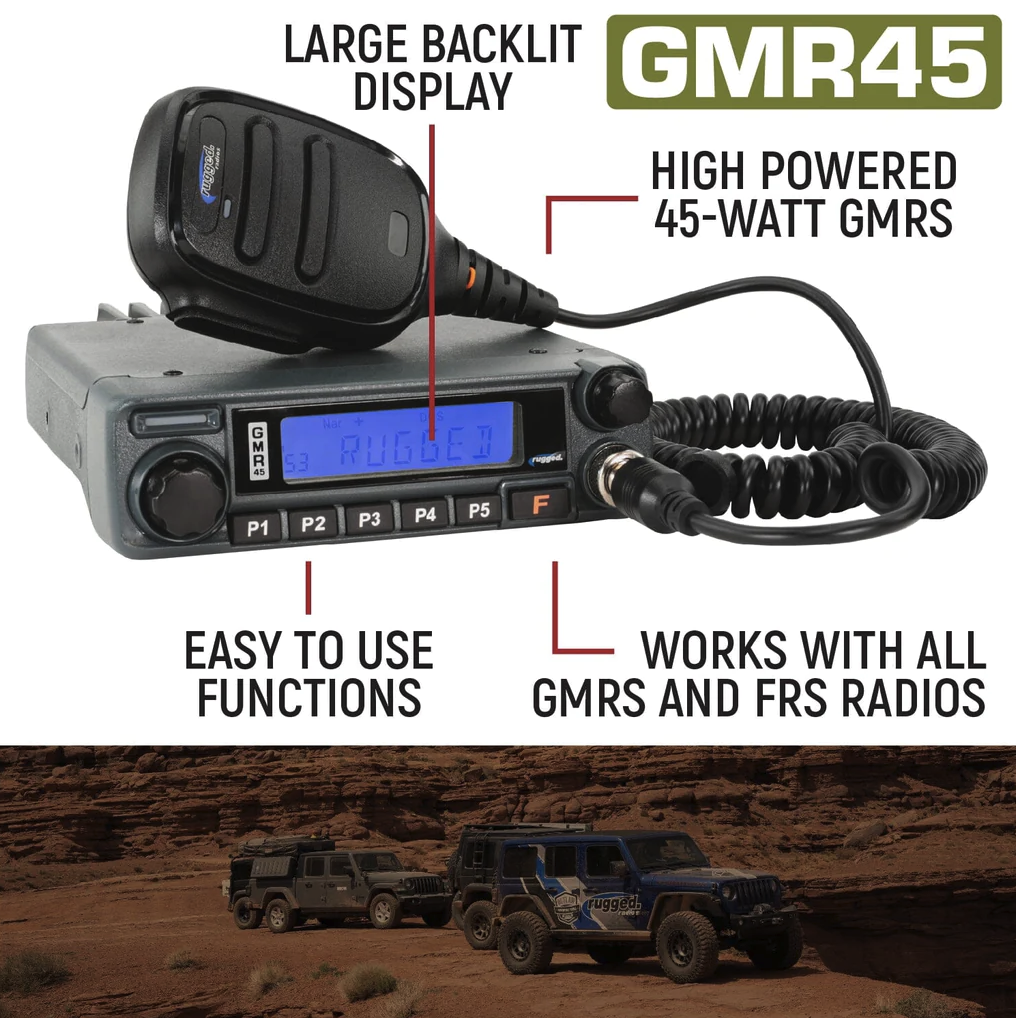

Go Further with our powerful, industry leading 45-watt GMRS radio kit featuring a low profile Stealth Antenna. Superior wattage provides superior power and range, giving you the ability to transmit long-distances when it matters.
Kit Features:
- GMRS 45-watt radio
- UHF Stealth Antenna
- Antenna coax cable
- 3/8" bar mount antenna bracket
- Features multiple pre-programmed channels, 8 repeater channels and 15 GMRS channels

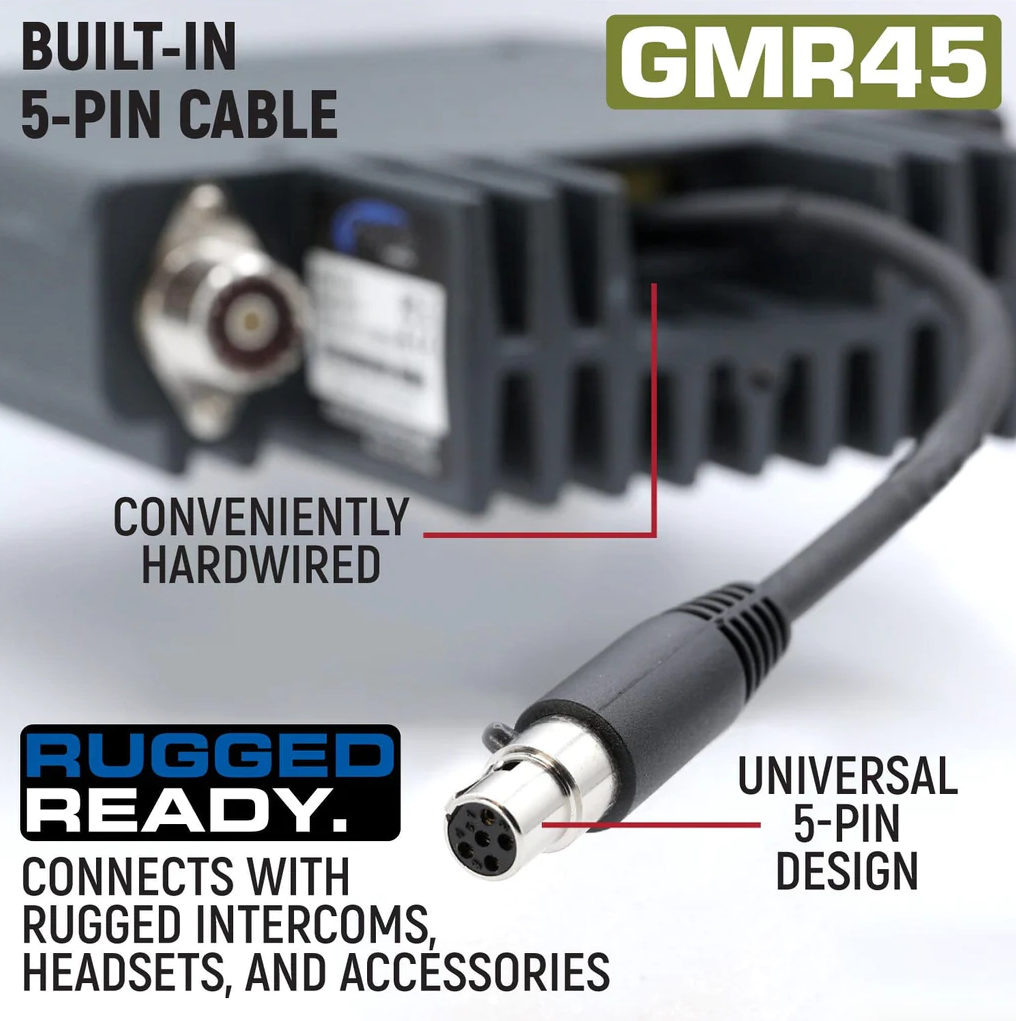

Easily connect to intercom, headset, or any 5-pin accessory with the built-in Rugged Ready pigtail cable!
Loaded with channels and features, this GMR45 kit includes everything you need to start talking!
Compatibility:
This radio works with all GMRS/FRS radios operating on the same frequencies, including but not limited to GMR45, GMR25, GMR2, and more.
Radio Dimensions: 5.5"W x 7"D x 1.5"H
GMRS License is required and easy to get: Click here.
User Manual: Click Here
Note: This Non Ground Plane Stealth antenna was designed for applications where a metal ground plane (such as a steel or aluminum) is not available. This design makes it perfect for mounting on a roll bar, fabricated tab, and other similar mounts. It will also work well on non-metallic roofs such as plastic or fiberglass. NOT intended for ground plane applications such as a steel or aluminum roof.

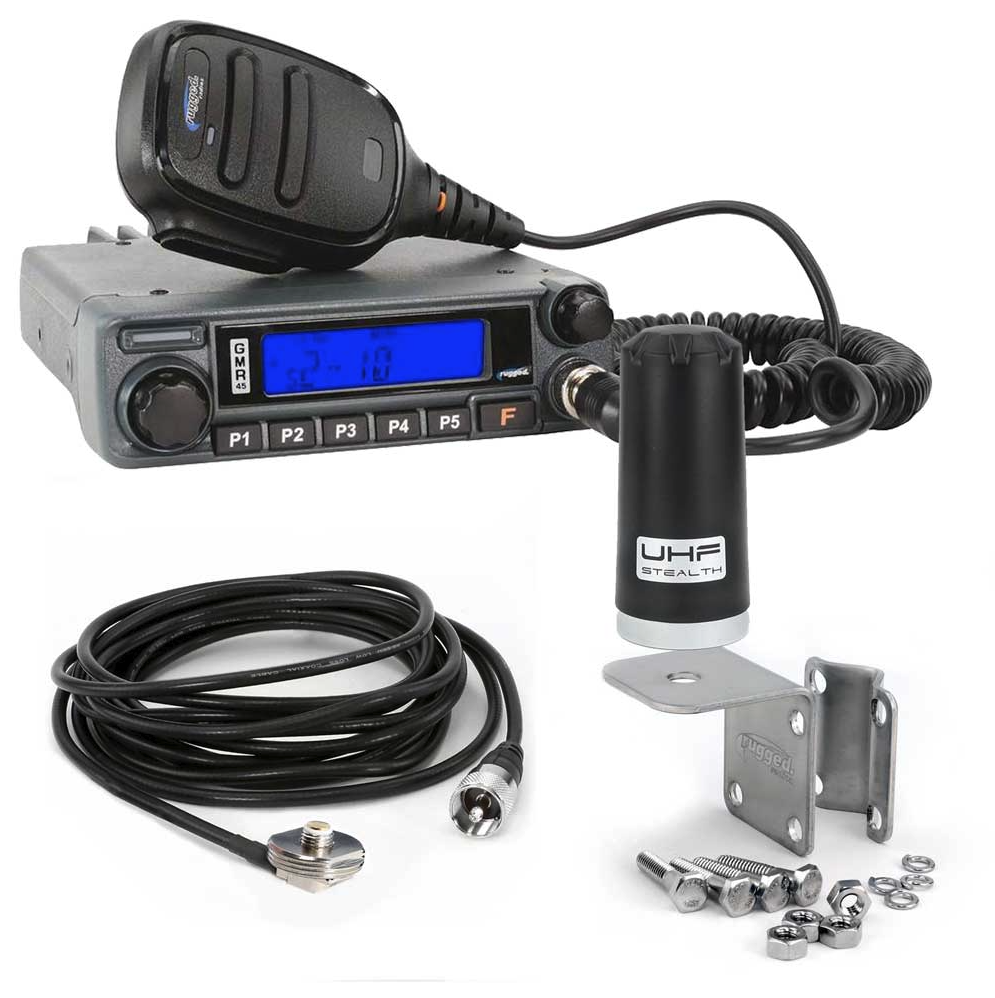

What's Included:
• GMR45 Mobile Radio

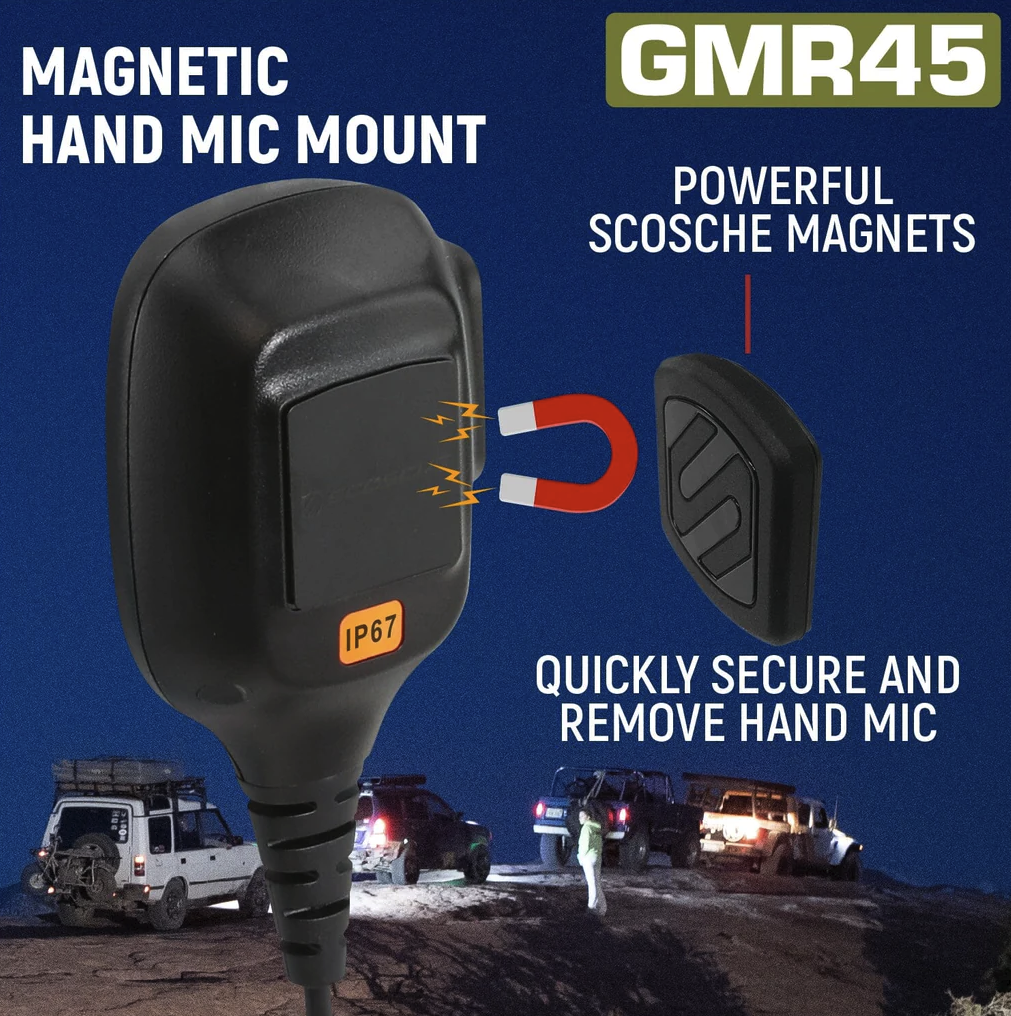

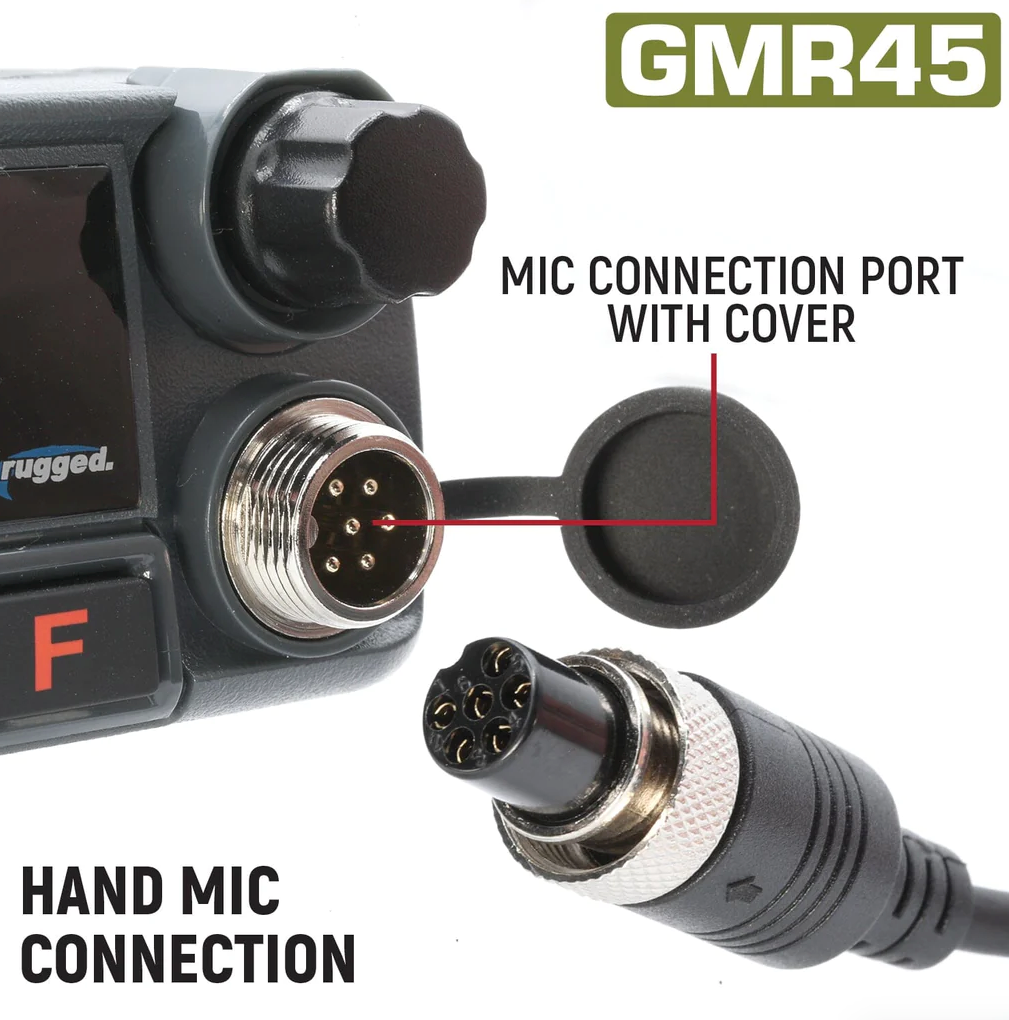

• Hand mic with Scosche Magic Mount
• 3/8" bar mount antenna bracket
• UHF Stealth Antenna
• 15' antenna coax cable with 3/8" NMO mount
• Scosche Magnetic hand mic hanger

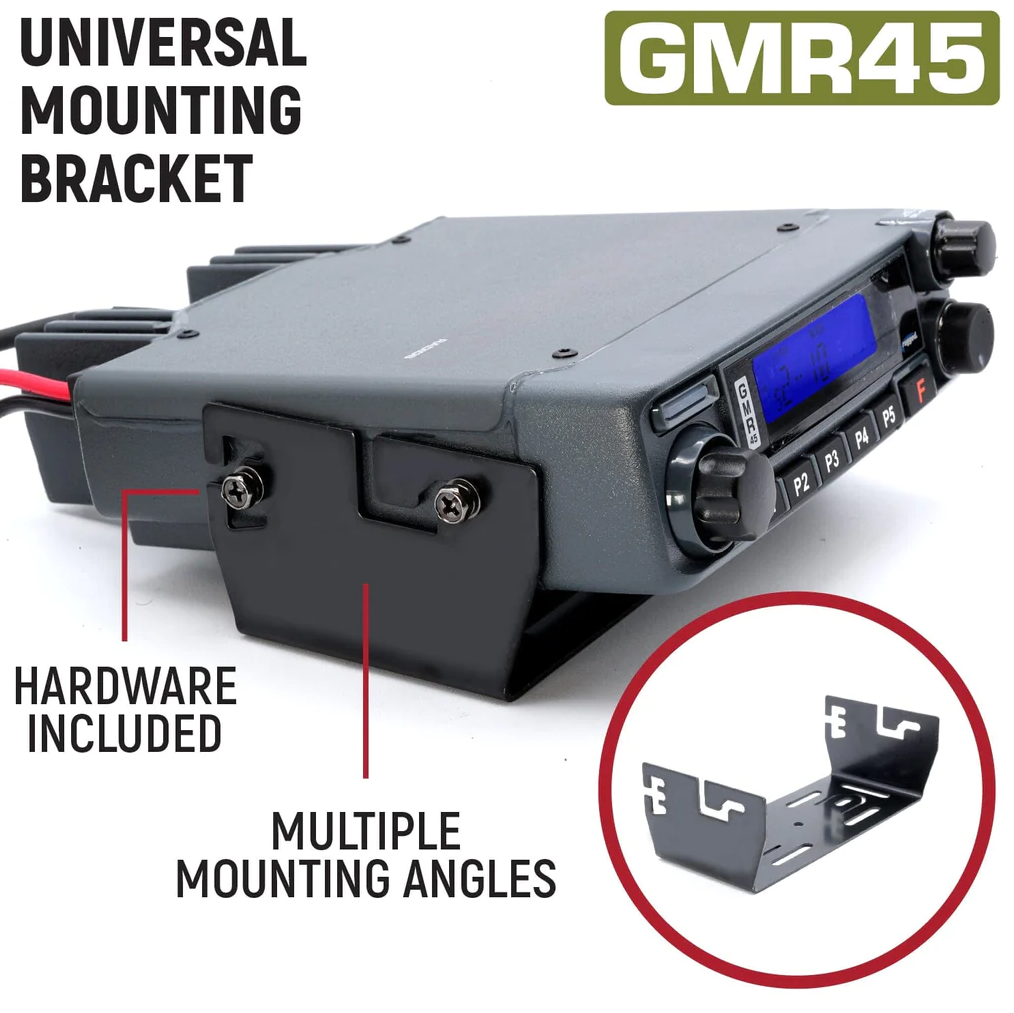

• Universal mounting bracket and hardware

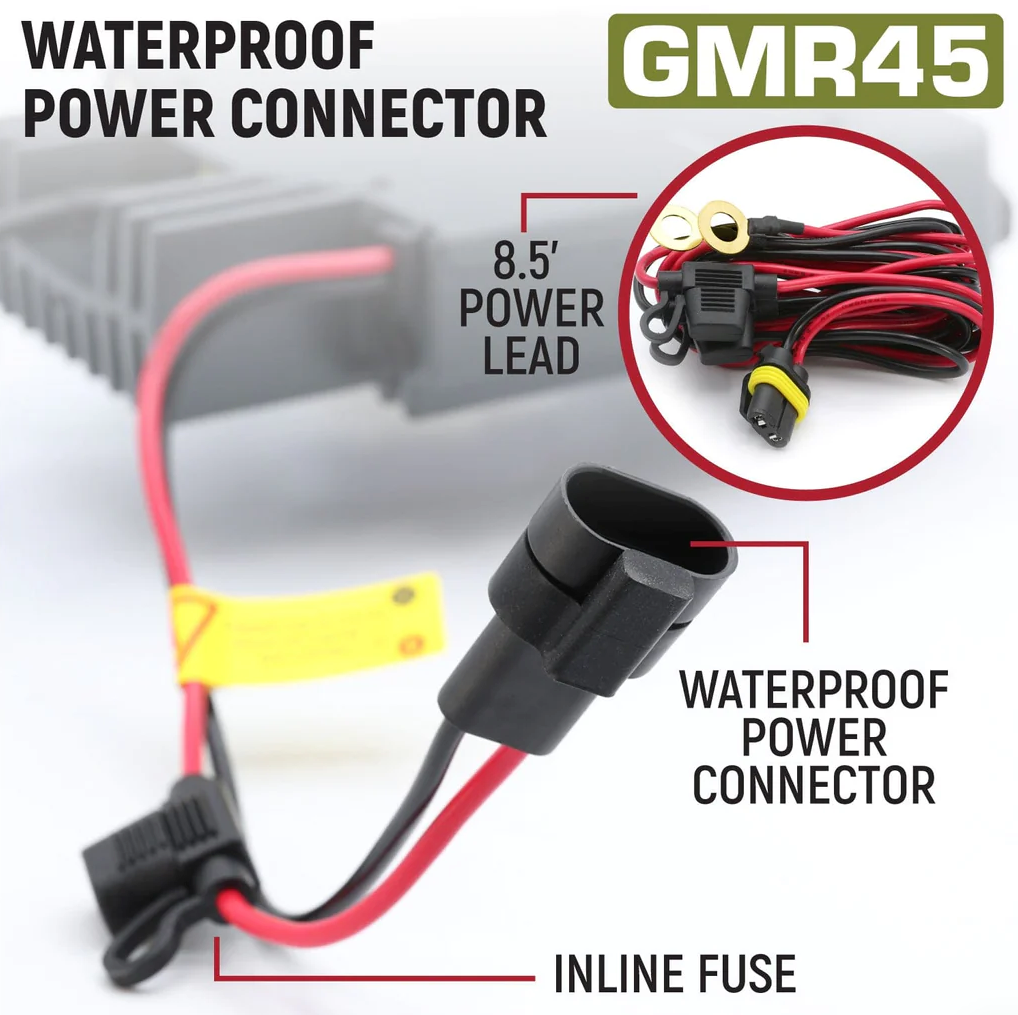

• Power cable with fuse
GENERAL
Frequency Range: 462-467MHz
Channel Capacity: 23
Channel Spacing: 12.5KHz
Frequency Stability: 2.5ppm
Operating Temperature: -10ºC~ + 60ºC
Operating Voltage: 13.6V DC ±20%
Dimension (HxWxD): 142 x 180 x 42mm
TRANSMITTER
Radio Frequency (RF) Power: 45W/5W
Frequency Modulation: 1KφF3E
Antenna Impedance: 50Ω
Modulation Limiting: ±2.5KHz
Modulation Distortion: < 5%
Radiated Spurious Emission: ≥ 60dB
FM Hum & Noise: ≥ 35dB
Adjacent Channel Power: ≥ 60dB
RECEIVER
Reference Sensitivity: 0.35μV
Adjacent Channel Selectivity: ≥ 60dB
Intermodulation Rejection: ≥ 60dB
Spurious Response Rejection: ≥ 60dB
Rated Audio Power: ≥ 2W
Audio Response: +1` -3dB (0.3 - 2.55KHz)
Rated Audio Distortion: ≤ 5%
FM Hum & Noise: ≥ 35dB
