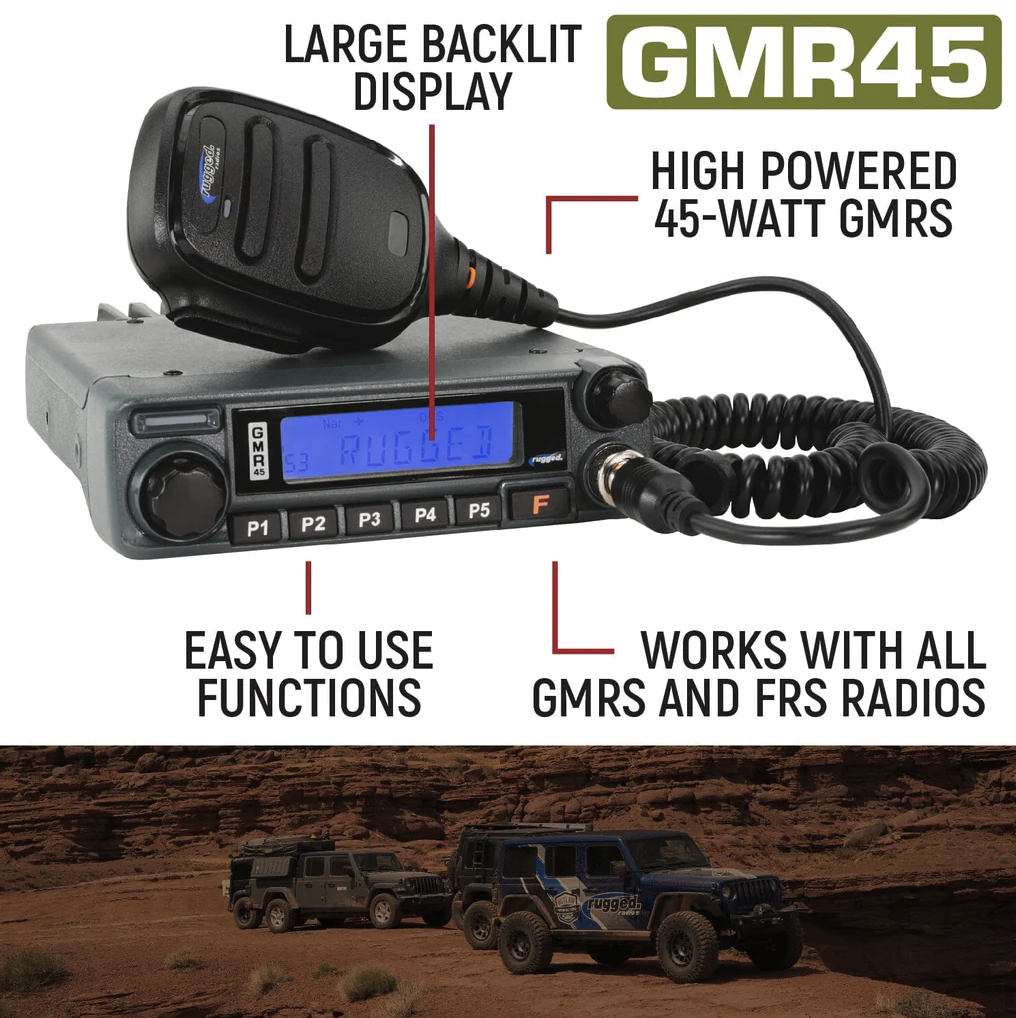

Go Further with our powerful, industry leading 45-watt GMRS radio kit. Superior wattage provides superior power and range, giving you the ability to transmit long-distances when it matters.
Loaded with channels and features, the GMR45 is ideal for installation into your vehicle or setup at base camp. This kit includes everything you need to start talking!

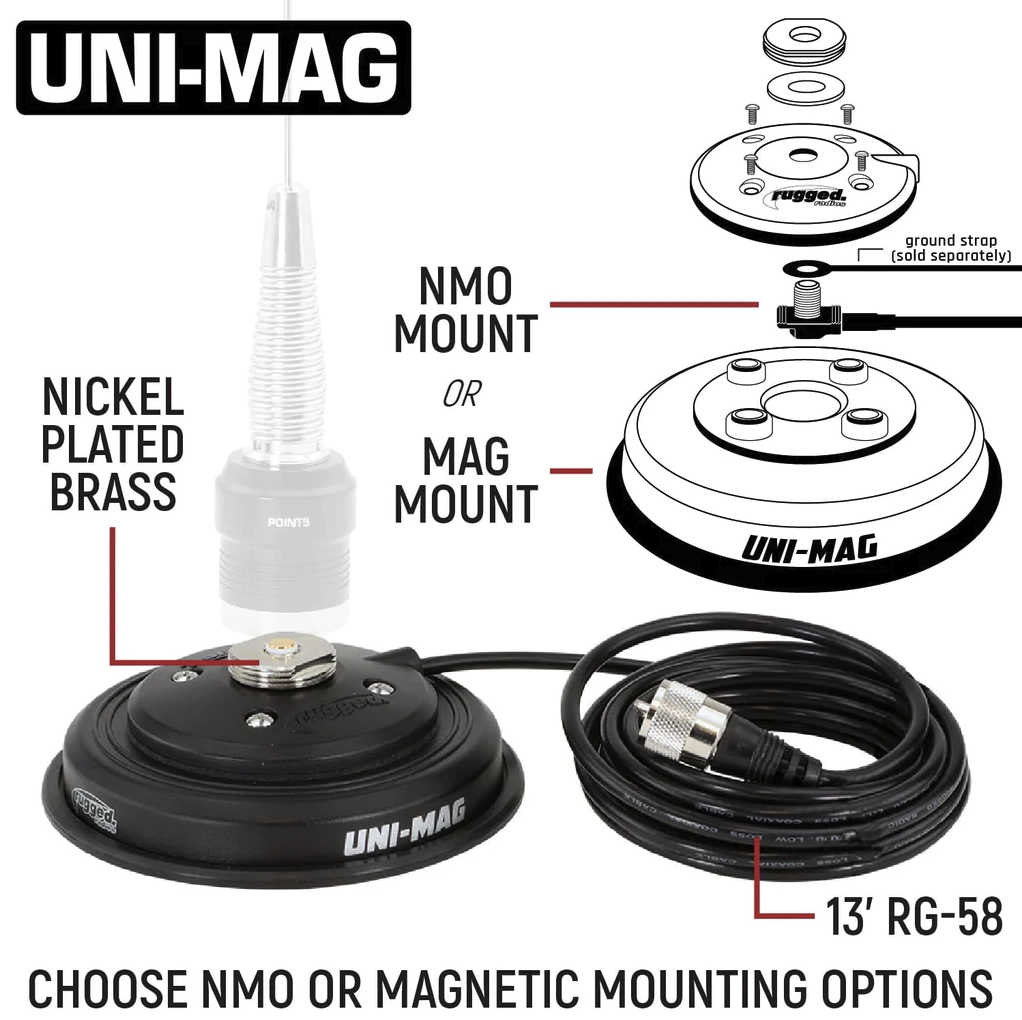

The included UNI-MAG Universal Antenna Mount and coax cable offers easy magnetic installation, or can be easily converted to a standard NMO mount, for hard-mounting directly to a tab or roof.

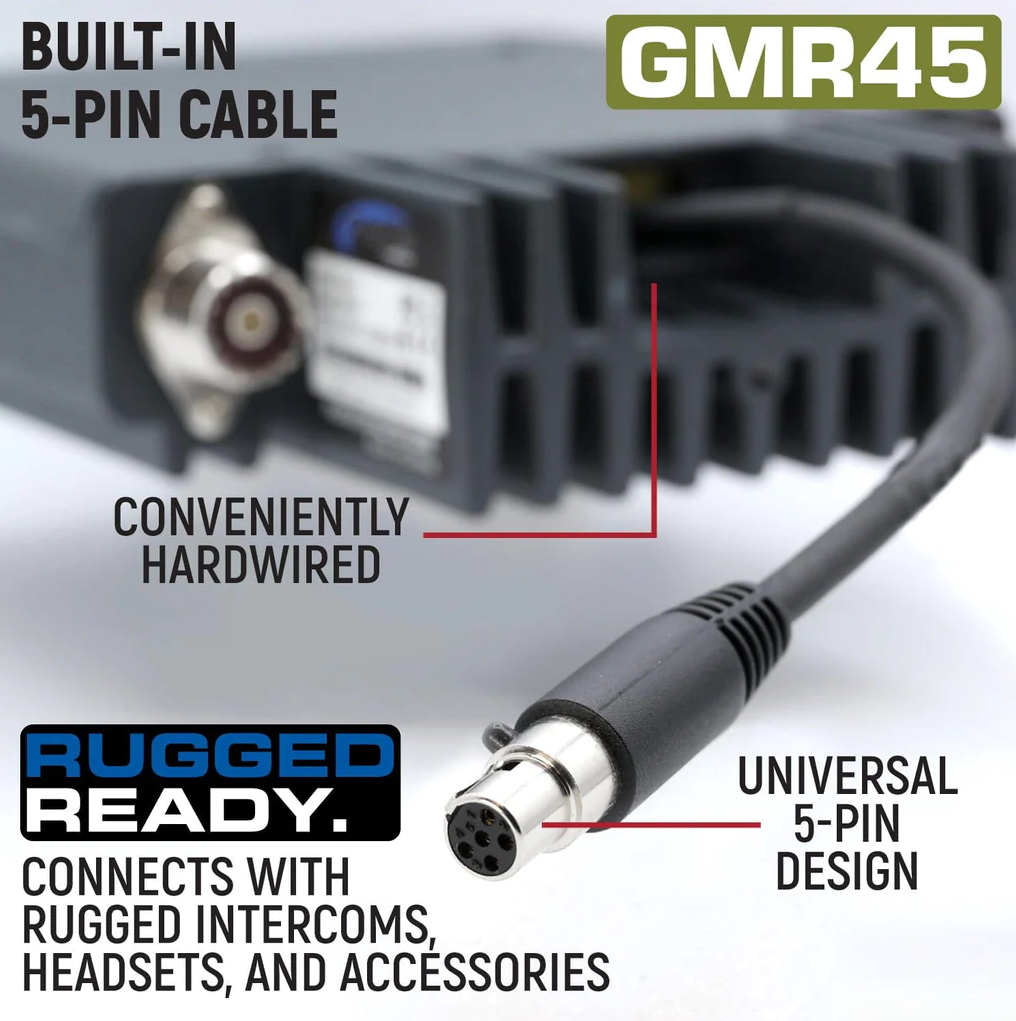

Easily connect to intercom, headset, or any 5-pin accessory with the built-in Rugged Ready pigtail cable!
Compatibility:
Works with all GMRS and FRS radios operating on the same channels, including Rugged GMR45, GMR25, and GMR2. Also works with all GMRS radios from other manufacturers including Motorola, Midland, Uniden, and many more.
Radio Dimensions: 5.5"W x 7"D x 1.5"H
GMRS License is required and easy to get: Click here.
User Manual: Click Here

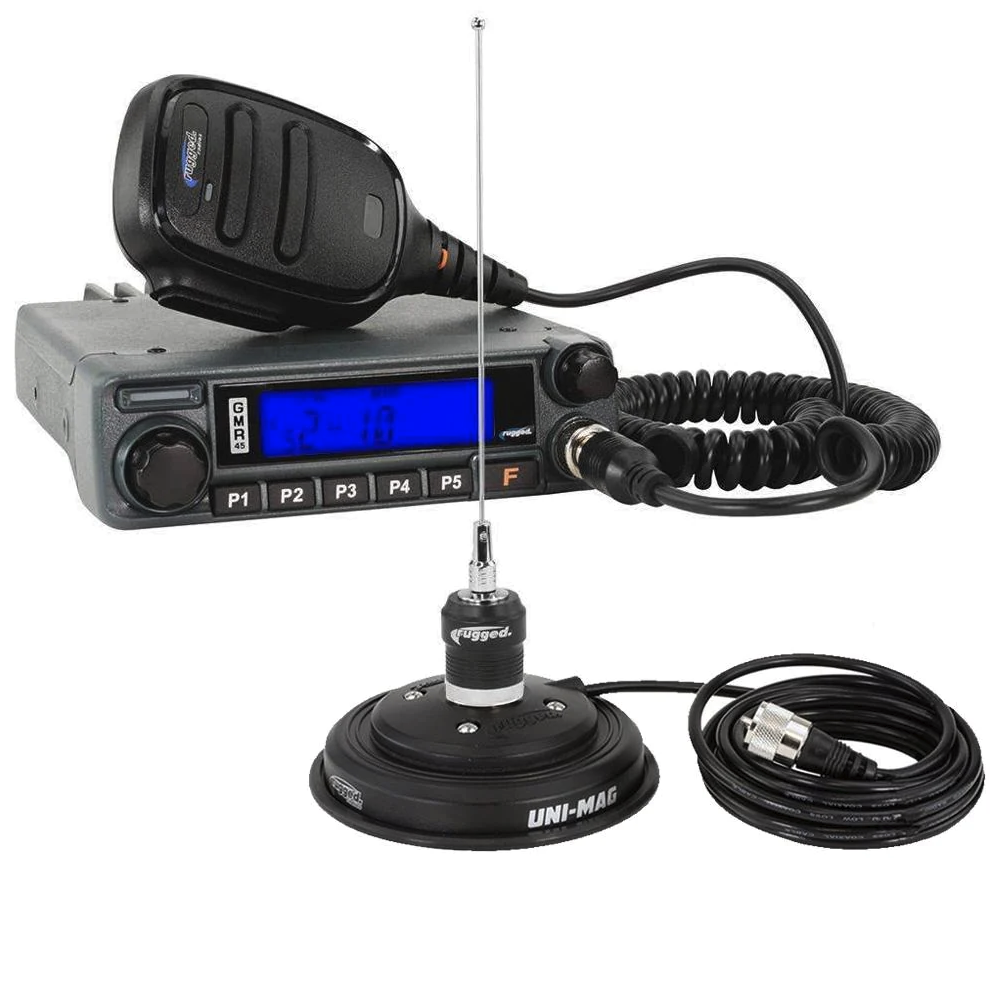

What's Included:
- Powerful GMR45 Mobile Radio
- UNI-MAG, magnetic / universal antenna mount

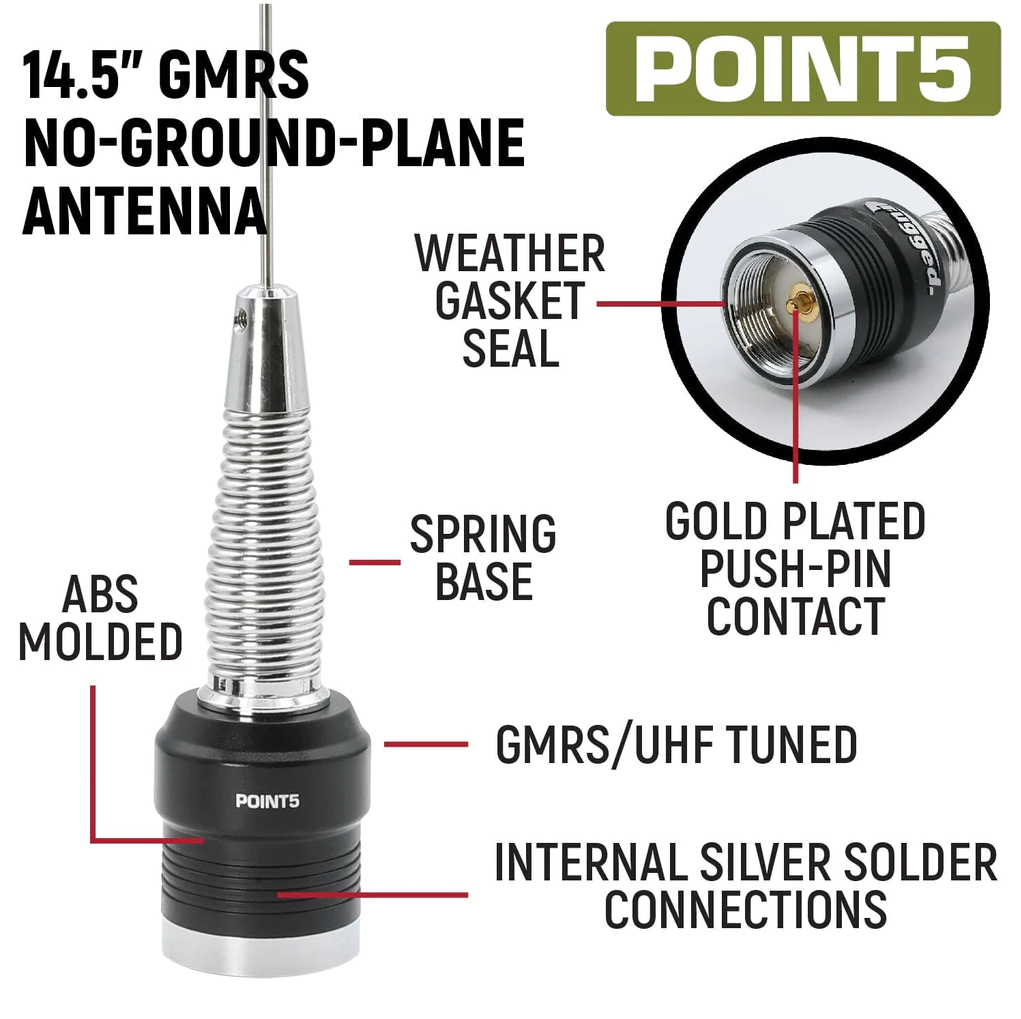

- Point-5 1/2 wave UHF antenna

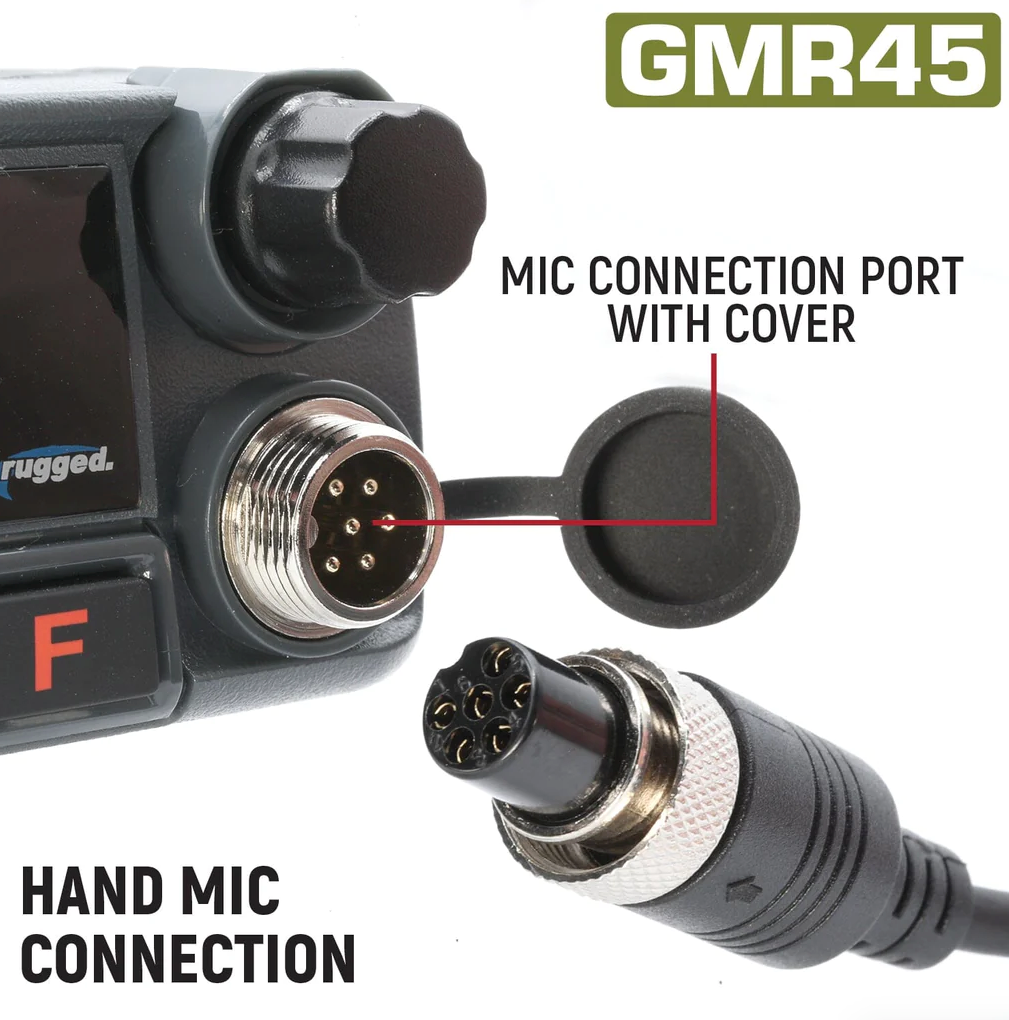

- Hand mic with Scosche Magic Mount

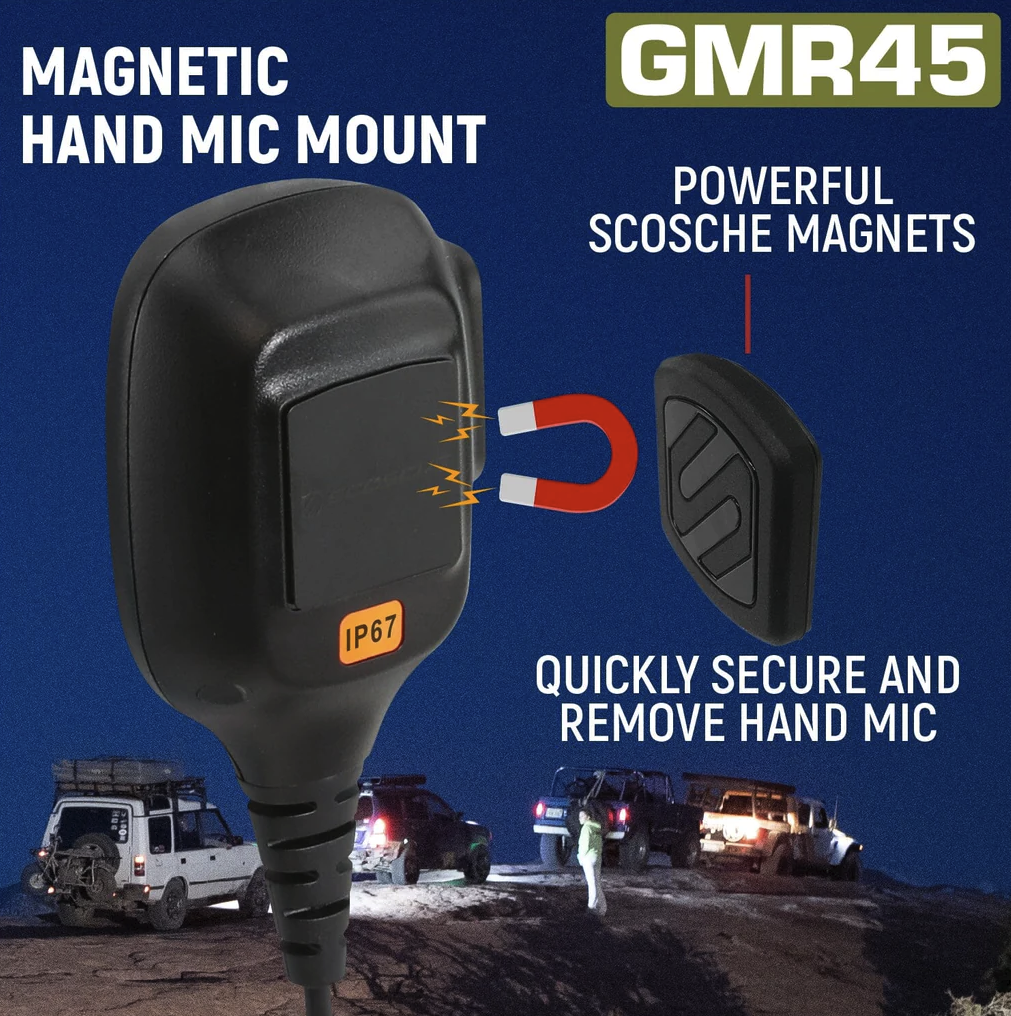

- Scosche Magnetic hand mic hanger

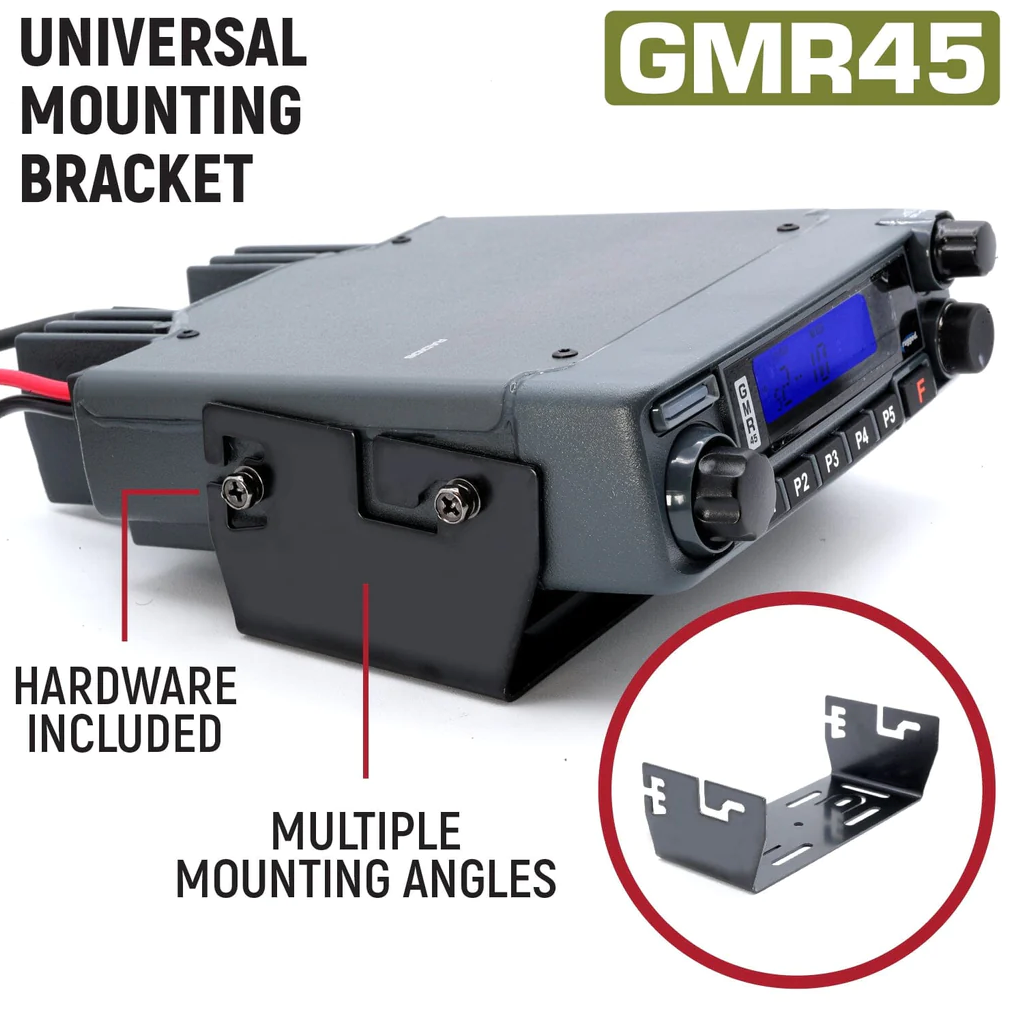

- Universal mounting bracket and hardware

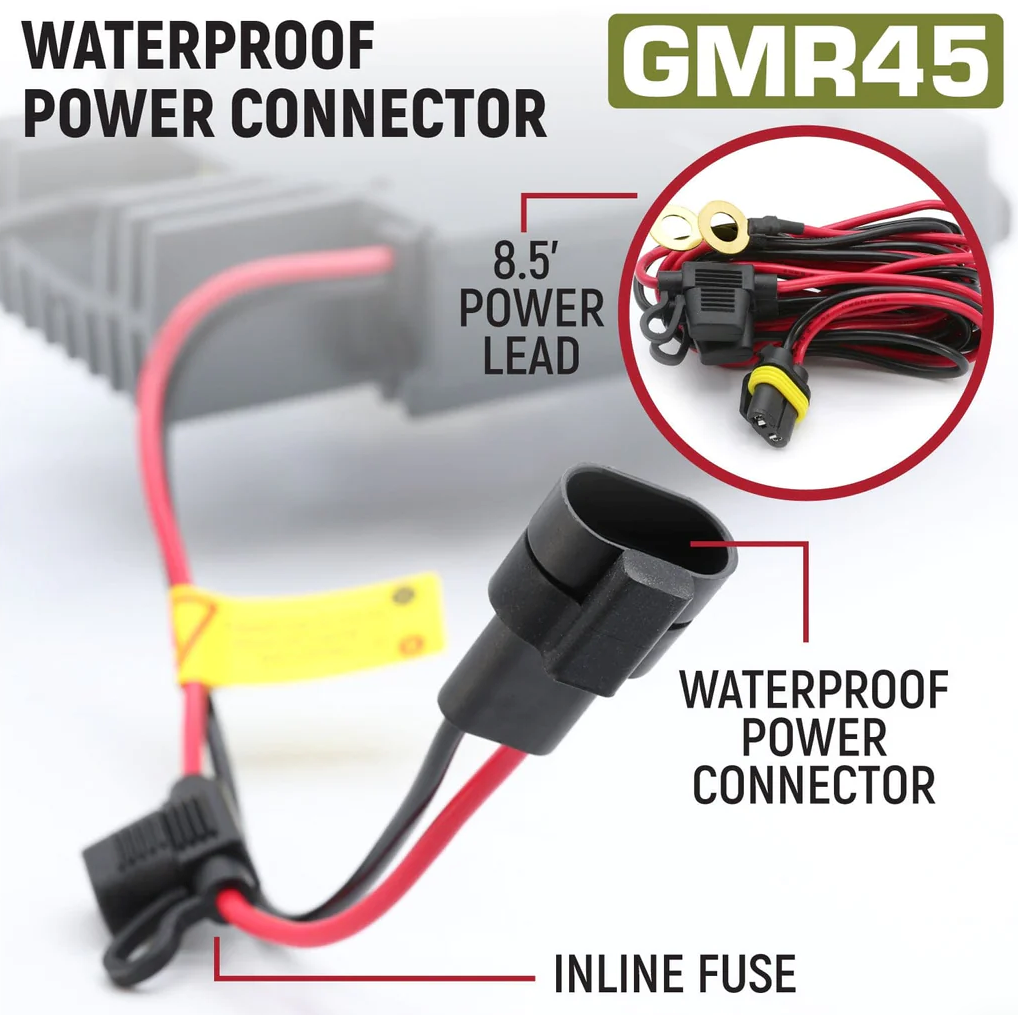

- Power cable with fuse
GENERAL
Frequency Range: 462-467MHz
Channel Capacity: 23
Channel Spacing: 12.5KHz
Frequency Stability: 2.5ppm
Operating Temperature: -10ºC~ + 60ºC
Operating Voltage: 13.6V DC ±20%
Dimension (HxWxD): 142 x 180 x 42mm
TRANSMITTER
Radio Frequency (RF) Power: 45W/5W
Frequency Modulation: 1KφF3E
Antenna Impedance: 50Ω
Modulation Limiting: ±2.5KHz
Modulation Distortion: < 5%
Radiated Spurious Emission: ≥ 60dB
FM Hum & Noise: ≥ 35dB
Adjacent Channel Power: ≥ 60dB
RECEIVER
Reference Sensitivity: 0.35μV
Adjacent Channel Selectivity: ≥ 60dB
Intermodulation Rejection: ≥ 60dB
Spurious Response Rejection: ≥ 60dB
Rated Audio Power: ≥ 2W
Audio Response: +1` -3dB (0.3 - 2.55KHz)
Rated Audio Distortion: ≤ 5%
FM Hum & Noise: ≥ 35dB
